Products TSI-500
台能系統自行研發多功能無線傳輸設備─TSI-500，可供作為GPRS無線傳輸之用。支援GPRS 900/1800/1900 三頻網段，內建TCP/IP、UDP協定，可使終端設備透過TCP/IP、UDP 方式經由GPRS網路及Internet或是自有網路與系統連結，系統可經由GPRS網路與遠端設備進行雙向無線傳輸溝通。
TSI-500結合遠端資料監控傳輸等特點，提供穩定可靠的工業級產品。同時可自行偵測GPRS通訊狀況，亦提供斷線重連功能。

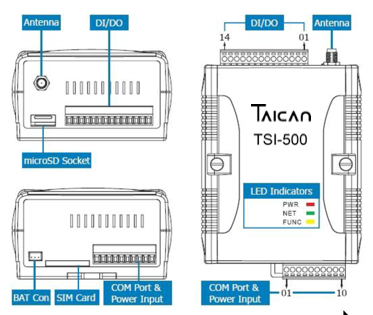

產品特色
- Built-in 32 bit CPU
- COM port: COM1 (5-wire RS232), COM2 (RS-485),
- I/O:6 channel DI, 2 channel DO, 1 channel AI
- Support Micro SD storage card
- Quad-band 850/900/1800/1900 MHz
- Automatic/continuous GPRS Link Management
- Support Modbus RTU protocol to connect to Max 3 Modbus RTU devices via RS-485 port
- Support I/O data logger file transferring by E-mail
- Support M2M.OPC server and M2M.API tools
- Local I/O linkage function to make the simple local control
- Support 3.7V 600 mAH Li-battery
數位/類比介面規格
I/O
Channel
Specification
DO
2
Output type : Open-Collector (NPN)
Load Voltage: +30V Max. Load Current : 100mA Max
DI
6
Input type : Sink or Source, Isolated channel with common power or ground
On Voltage : +3.5V~+30V
Off Voltage : +1V Max
AI
1
Resolution : 12-bit
Input Range/Type : 0~20mA
Sample Rate : 1KHz Max
硬體規格
Comm. Interface
COM ports
COM1: TxD,RxD,GND for configuration; COM2: RS-485
GPRS Interface
Frequency Band
Quad-Band 850/900/1800/1900 MHz; GPRS multi-slot : class 10/8
GPRS connectivity
GPRS class 10; GPRS station class B; GPRS class 10
DATA GPRS
Downlink transfer:max 85.6 kbps; Uplink transfer : max 42.8kbps
General
Power Requirement
Unregulated +10VDC ~ +30VDC. Support 3.7V Li-battery backup
Power Consumption
Idle: 65 mA @ 24 VDC; Data Link: 170 mA @ 24 VDC; Peak: 450 mA @ 24 VDC
Environment
Operation Temp.
Operation : -25℃ to 75℃; Storage Temp : -40℃ to 80℃
Humidity
5~95% non-condensing
Dimensions
91mm x 132mm x 52mm (long*width* high)
LED指示說明
LED
Description
EXT
(red)
on
The external Power is active
off
The external Power is not active
STA (orange)
Normal
GSM Fail
PIN code is wrong
EXT (on)
Blanking
(1 sec)
Always on or off
Blinking
per 50 ms
GSM
(green)
Blinking
Modem normal
off
Modem fail (or Blinking(not 3 sec))
 |
 |
 |
 |
 |
 |
